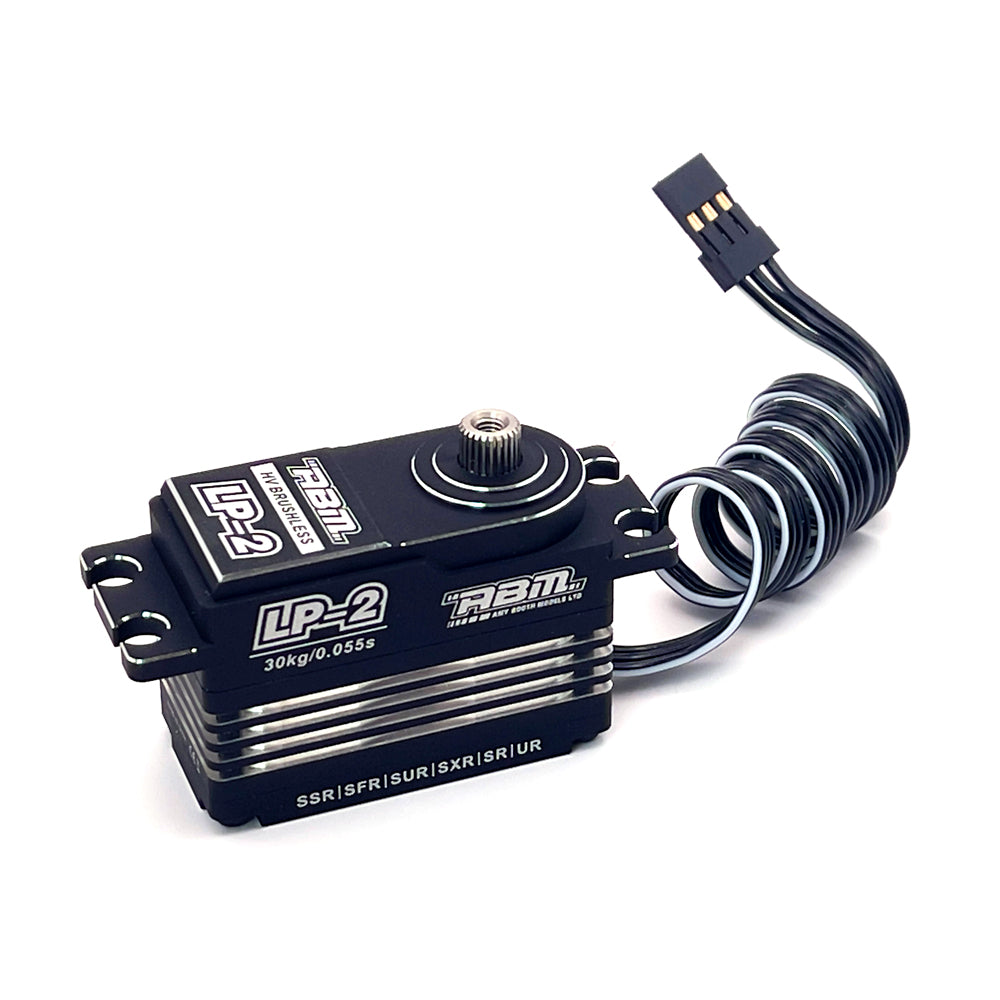

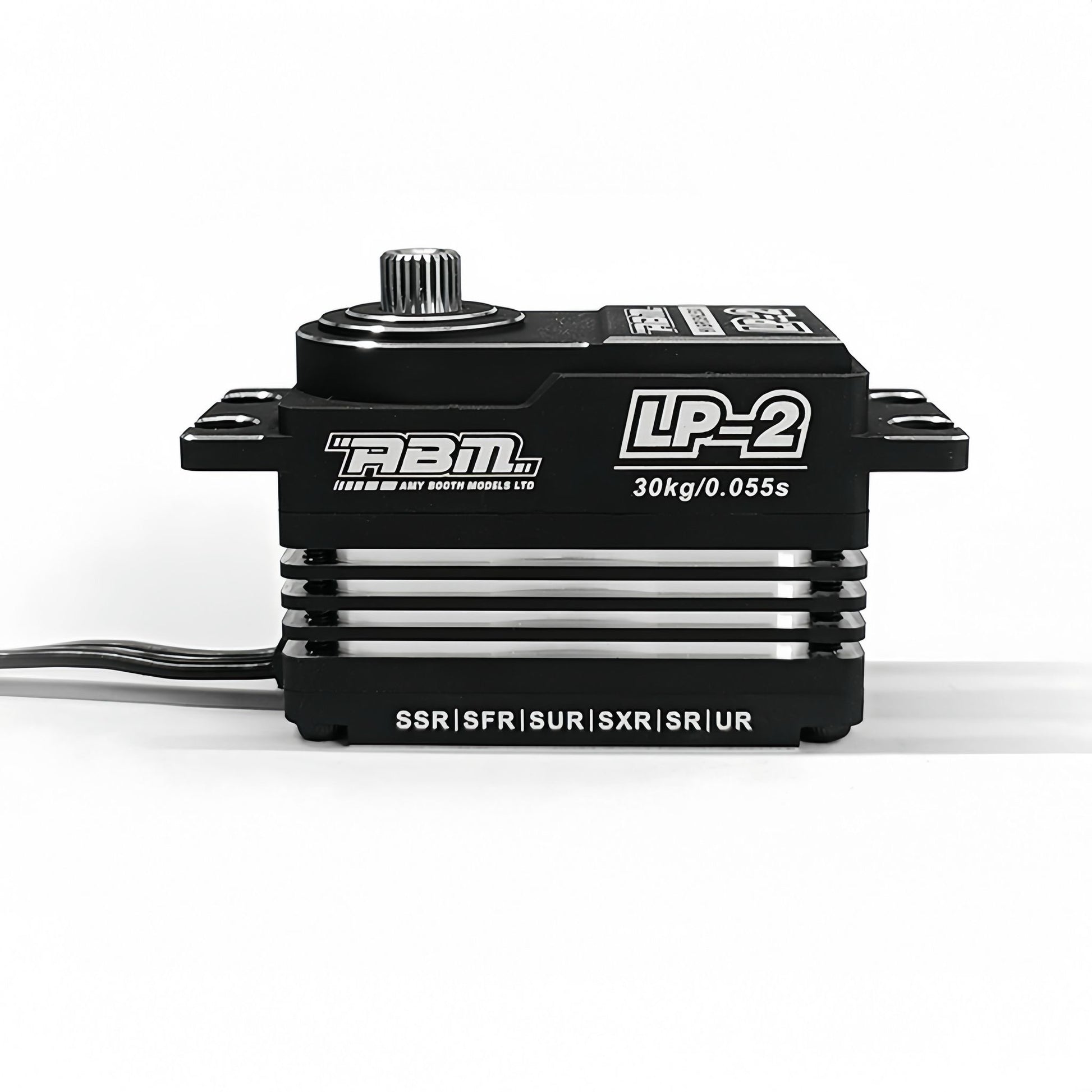

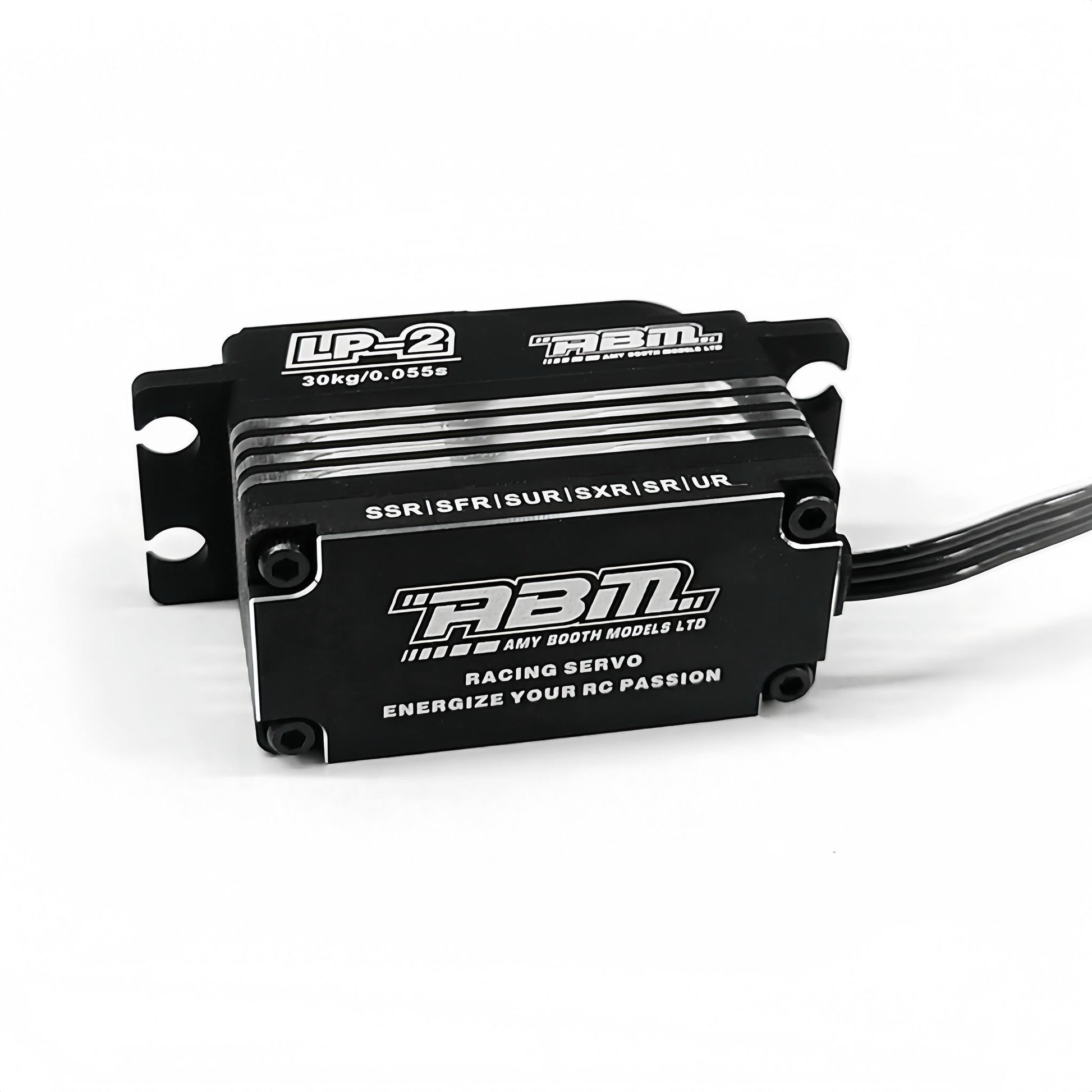

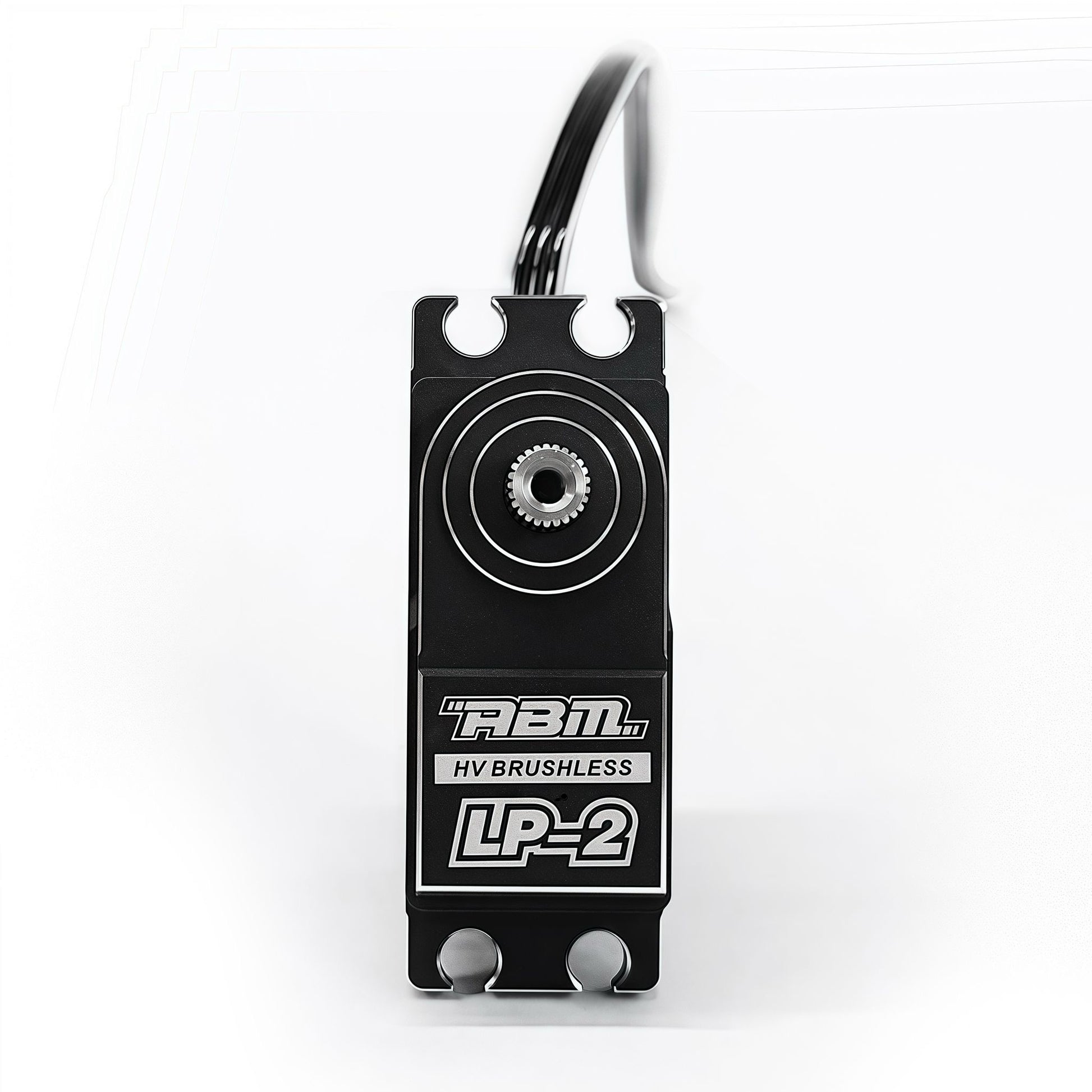

ABM60002 HV Brushless Servo LP-2 30kg-0.055sec

ABM60002 HV Brushless Servo LP-2 30kg-0.055sec

The ABM LP-2 HV Low Profile Brushless Servo delivers rapid response and strong holding power in a compact case. With up to 30.0 kg-cm of torque and a 0.055 s transit speed at 8.4V, this CNC aluminium, digital brushless unit is designed for high performance and consistent control. Part number ABM60002. Ideal for 1/0th Buggy, 1/10th touring etc

ABM LP-2
Four-pole brushless motor: high performance, long life-span, heat-resistant and faster response
HV operation: 6.0–8.4V DC
Dual ball bearings for smooth, precise movement
7075 + steel gear train for durability
Supports Flysky radio i-BUS2 protocol for servo parameter setup, data logging and warning functions
Suggested compatibility: high-speed radio modes
• Noble NB4 Pro: NOR / SR / SFR
• Futaba: NOR / SR / UR
• Sanwa: NOR / SHR / SSR / SUR / SXR
Working frequency: 1520 / 1666 Hz
Operating temperature: -20 to 60°C
Max current: 4.0 A
Low profile case: 41.0 × 20.0 × 29.0 mm; weight: 63 g
Performance Specifications
Torque @6.0V: 20.0 kg-cm (277.7 oz-in)
Torque @7.4V: 26.0 kg-cm (361.1 oz-in)
Torque @8.4V: 30.0 kg-cm (416.6 oz-in)
Speed @6.0V: 0.083 second
Speed @7.4V: 0.067 second
Speed @8.4V: 0.055 second
Construction
Motor type: Brushless
Bearing type: Ball bearing ×2
Gear type: 7075 + steel
Size-conscious installations benefit from the 20 mm low profile height, while the robust gear train and brushless drive offer dependable performance across a wide voltage range. The LP-2 HV blends speed, torque and control for demanding RC applications.
Lead Length approx.. 270mm
